MCMC diagnostics with Arviz

This tutorial shows how to evaluate the quality of MCMC samples generated via sbi using the arviz package.

Outline:

1. Train MNLE to approximate the likelihood underlying the simulator
2. Run MCMC using pyro MCMC samplers via sbi interface
3. Use arviz to visualize the posterior, predictive distributions and MCMC diagnostics.

import arviz as az
import torch
from pyro.distributions import InverseGamma
from torch.distributions import Beta, Binomial, Gamma

from sbi.inference import MNLE, MCMCPosterior, likelihood_estimator_based_potential
from sbi.utils import MultipleIndependent

# Seeding
torch.manual_seed(1);

WARNING (pytensor.tensor.blas): Using NumPy C-API based implementation for BLAS functions.

# Toy simulator for mixed data
def mixed_simulator(theta):
    beta, ps = theta[:, :1], theta[:, 1:]

    choices = Binomial(probs=ps).sample()
    rts = InverseGamma(concentration=2 * torch.ones_like(beta), rate=beta).sample()

    return torch.cat((rts, choices), dim=1)


# Define independent priors for each dimension.
prior = MultipleIndependent(
    [
        Gamma(torch.tensor([1.0]), torch.tensor([0.5])),
        Beta(torch.tensor([2.0]), torch.tensor([2.0])),
    ],
    validate_args=False,
)

Train MNLE to approximate the likelihood

For this tutorial, we will use a simple simulator with two parameters. For details see the example on the decision making model.

Here, we pass mcmc_method="nuts" in order to use the underlying pyro No-U-turn sampler, but it would work as well with other samplers (e.g. “slice_np_vectorized”, “hmc”).

Additionally, when calling posterior.sample(...) we pass return_arviz=True so that the Arviz InferenceData object is returned. This object gives us access to the wealth of MCMC diagnostics tool provided by arviz.

# Generate training data and train MNLE.
num_simulations = 10000
theta = prior.sample((num_simulations,))
x = mixed_simulator(theta)

trainer = MNLE(prior)
likelihood_estimator = trainer.append_simulations(theta, x).train()

Run Pyro NUTS MCMC and obtain arviz InferenceData object

# Simulate "observed" data x_o
torch.manual_seed(42)
num_trials = 100
theta_o = prior.sample((1,))
x_o = mixed_simulator(theta_o.repeat(num_trials, 1))

# Set MCMC parameters and run Pyro NUTS.
mcmc_parameters = dict(
    num_chains=4,
    thin=5,
    warmup_steps=50,
    init_strategy="proposal",
    method="nuts_pyro",
)
num_samples = 1000

# get the potential function and parameter transform for constructing the posterior
potential_fn, parameter_transform = likelihood_estimator_based_potential(
    likelihood_estimator, prior, x_o
)
mnle_posterior = MCMCPosterior(
    potential_fn, proposal=prior, theta_transform=parameter_transform, **mcmc_parameters
)

mnle_samples = mnle_posterior.sample(
    (num_samples,), x=x_o, show_progress_bars=False
)
# get arviz InferenceData object from posterior
inference_data = mnle_posterior.get_arviz_inference_data()

Generate arviz plots

The resulting InferenceData object can be passed to most arviz plotting functions, and there are plenty see here for an overview.

To get a better understanding of the InferenceData object see here.

Below and overview of common MCMC diagnostics plot, see the corresponding arviz documentation for interpretation of the plots.

We will a full use-case using the SBI-MCMC-arviz workflow soon.

print(inference_data.posterior)

<xarray.Dataset> Size: 50kB
Dimensions:      (chain: 4, draw: 1250, theta_dim_0: 2)
Coordinates:
  * chain        (chain) int64 32B 0 1 2 3
  * draw         (draw) int64 10kB 0 1 2 3 4 5 ... 1244 1245 1246 1247 1248 1249
  * theta_dim_0  (theta_dim_0) int64 16B 0 1
Data variables:
    theta        (chain, draw, theta_dim_0) float32 40kB 1.908 0.7609 ... 0.9063
Attributes:
    created_at:     2024-08-23T15:56:16.510051+00:00
    arviz_version:  0.19.0

Diagnostic plots

az.style.use("arviz-darkgrid")

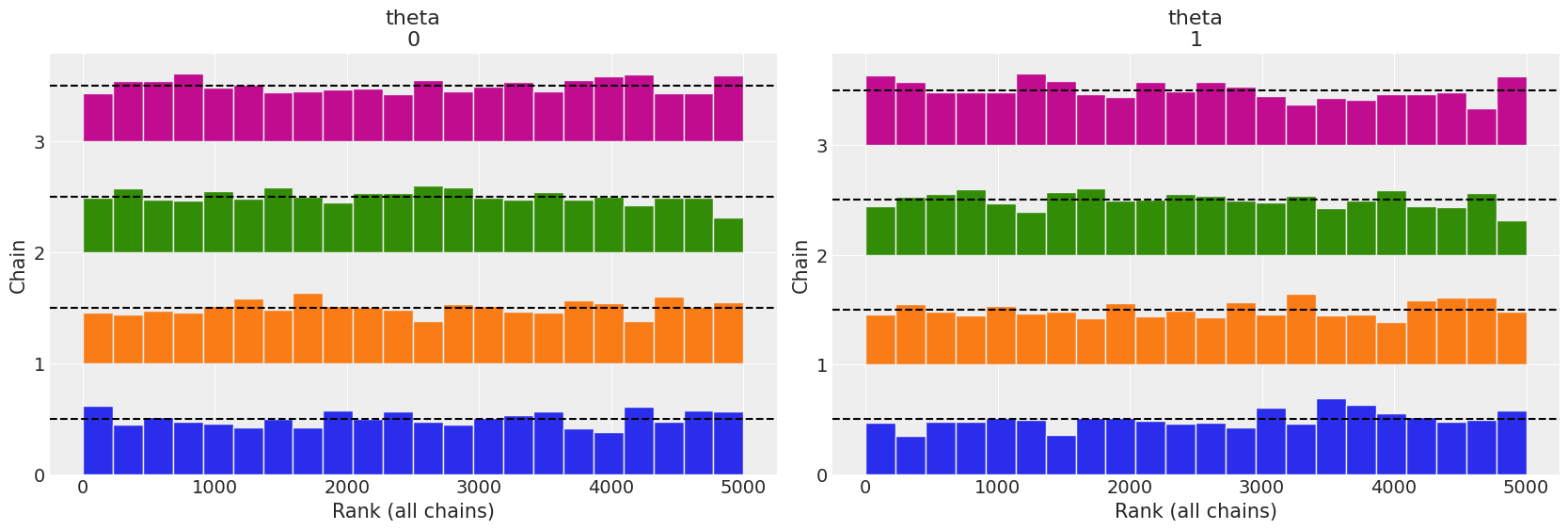

az.plot_rank(inference_data)

array([<Axes: title={'center': 'theta\n0'}, xlabel='Rank (all chains)', ylabel='Chain'>,
       <Axes: title={'center': 'theta\n1'}, xlabel='Rank (all chains)', ylabel='Chain'>],
      dtype=object)

az.plot_autocorr(inference_data);

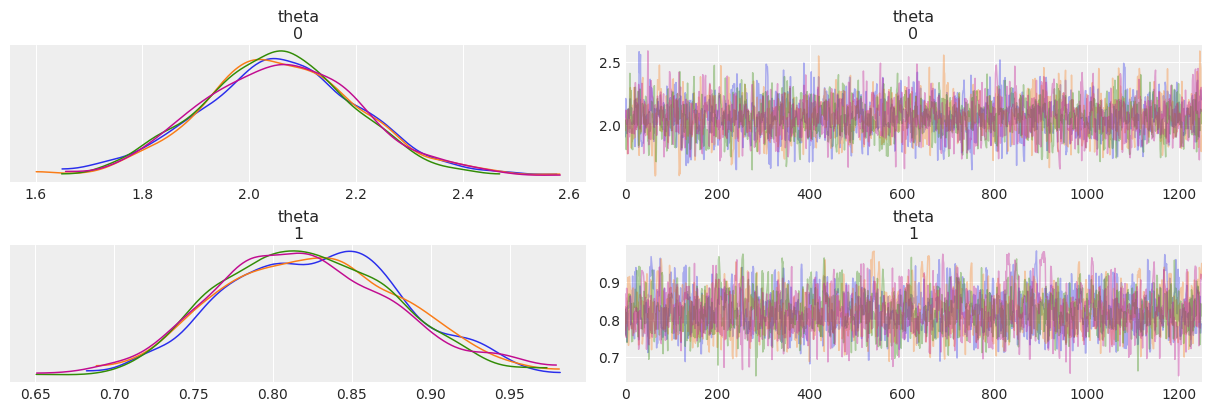

az.plot_trace(inference_data, compact=False);

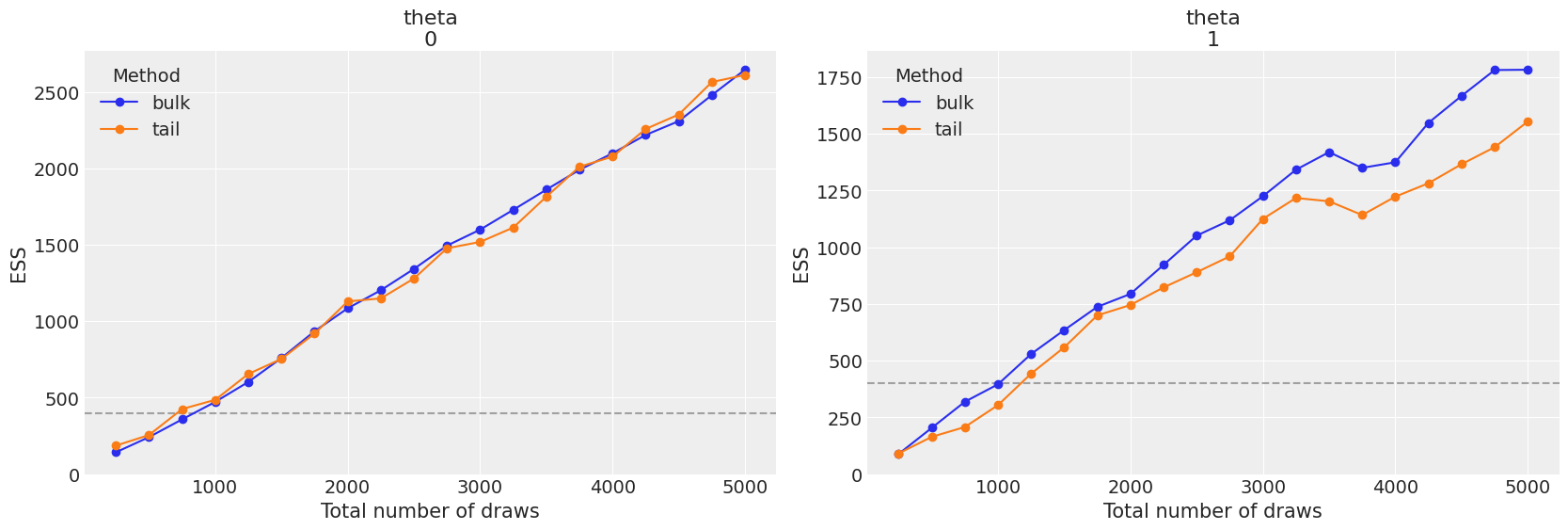

az.plot_ess(inference_data, kind="evolution");

Posterior density plots

az.plot_posterior(inference_data)

array([<Axes: title={'center': 'theta\n0'}>,
       <Axes: title={'center': 'theta\n1'}>], dtype=object)

print(
    f"""Given the {num_trials} we observed, the posterior is centered around
    true underlying parameters theta_o: {theta_o}"""
)

Given the 100 we observed, the posterior is centered around
    true underlying parameters theta_o: tensor([[1.9622, 0.7550]])

az.plot_pair(inference_data)

<Axes: xlabel='theta\n0', ylabel='theta\n1'>

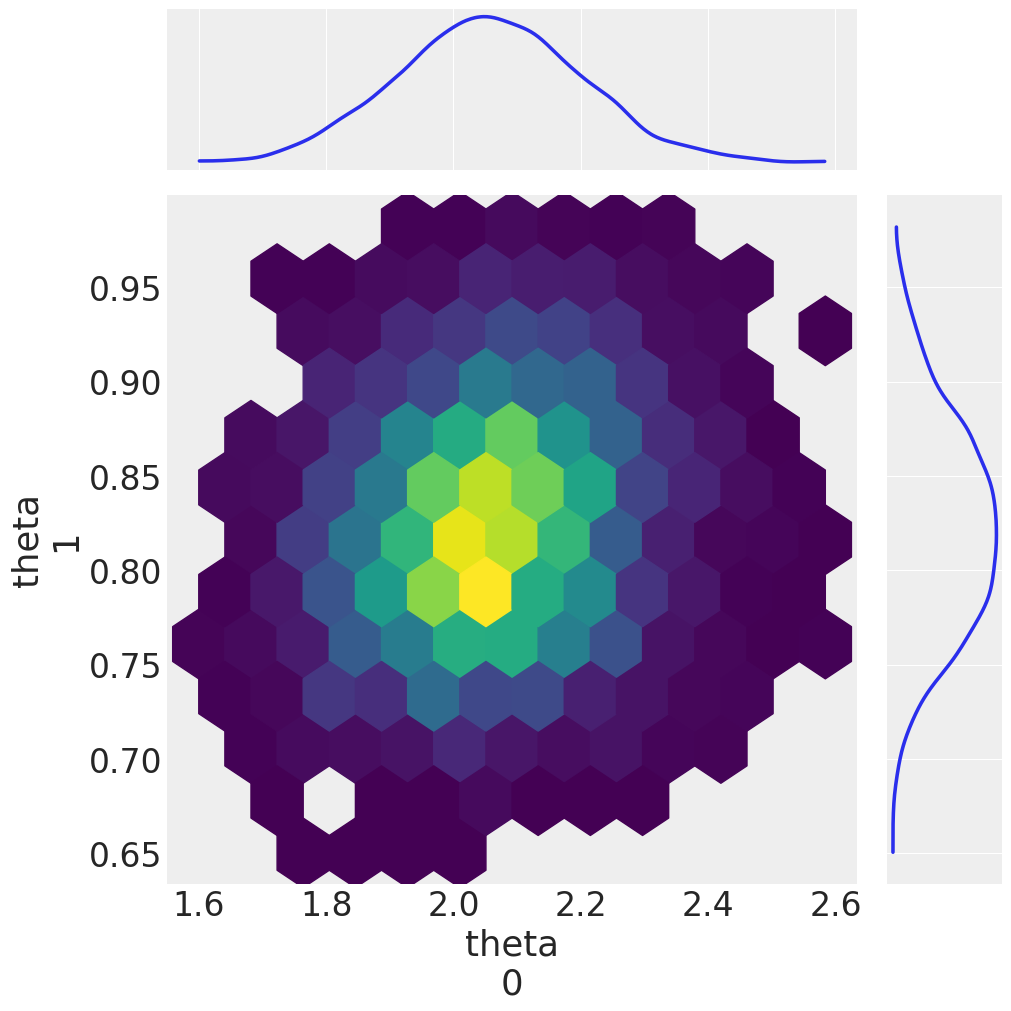

az.plot_pair(
    inference_data,
    var_names=["theta"],
    kind="hexbin",
    marginals=True,
    figsize=(10, 10),
)

array([[<Axes: >, None],
       [<Axes: xlabel='theta\n0', ylabel='theta\n1'>, <Axes: >]],
      dtype=object)
